Formatic R2200 Burger Machine

Product Code: MX00003


SAVE £144
Get 27k Burger Papers
FREE
Offer ends 30/11/2019
See below for details
Formatic R2200 Burger Machine
List Price £5,534.27

£4,300.00

 Each

Qty
up down
Formatic R2200 Burger Machine
In Stock ✔


Other Items In Range
Live Chat
Chat live to our sales team


Product Information

FORMATIC R2200 Burger Machine in stock - ORDER TODAY!

The Formatic R2200 burger machine is the perfect solution to your food forming and portioning requirements - capable of producing 2200 burgers per hour.

The Formatic burger machine is able to form a wide range of products including meat, fish, potato, vegetable and ethnic, butter, cheese as well as bakery and confectionery into a variety of different shapes and sizes.

The Formatic burger machine is the industry standard for small to high volume food producers.

A foot pedal to control the speed, plus 500 burger papers are included when ordering this machine.




TECHNICAL INFORMATION:
  • Burger Machine External Dimensions ( Length (A) x Width(B) x Height (C) ) 700x600x640mm
  • Burger Machine Throughput 2200/hr (variable)
  • Burger Machine Power 0.55kW (550w) (1 phase)
  • Burger Machine Electricity Supply 220/240v
  • Burger Machine Hopper Capacity 18 Litres / 15kg
  • Burger Machine Weight 75kg




SIMPLE AND SMOOTH OPERATION:

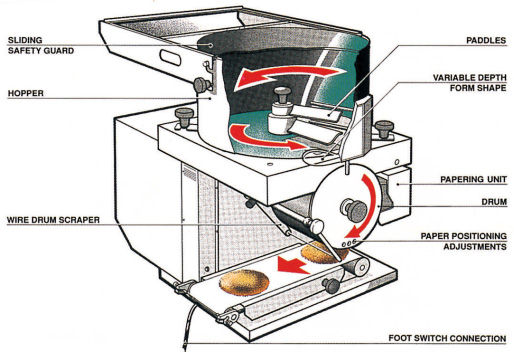

Simplicity is the strength of the Formatic system. Suited to a variety of mixtures of numerous textures and consistencies, the Formatic uses synchronized paddles to gently press mixture into the required form shape.

Assisted by the wire drum scraper, the formed product is then smoothly ejected onto the conveyor, presenting it for packaging or additional processing.




HOW MANY BURGERS DOES IT MAKE? BURGER SIZES?

The R2200 burger machine comes as standard with a 15kg hopper and can be fitted with either a 100mm or 120mm burger drum.

100mm drum = 4” burger

or

120mm drum = 5” burger

The machine comes as standard with a 100mm drum = 4” burger. If you would prefer a 118mm drum = 5” burger then please let us know.

The burger making machine is capable of producing 2200 burger per hour but comes with a variable speed control so you are in control of how fast it works. The burger making machine is suited to a variety of mixtures and numerous textures and consistencies and uses synchronised paddles to gently press the mixture into the required shaped drum.


OPTIONAL EXTRAS:



Various further options are available for the burger making machine including an extended hopper, auto wire cleaner, extended conveyor belts etc. For more information on the options then please call our Sales Team. Extras + approx prices are listed below:

  • Auto Wire Clean - approx £700 / €795
  • Hoppers (various sizes) - contact us for prices and sizes available.
  • Extended Conveyors - approx £475 / €540
  • Compressor - approx £370 / €425
  • Drums (with non circular shapes) - see below


DRUM SHAPES:

Each Formatic burger drum can be adjusted to increase or decrease the depth of the burger, this is adjustable between 5 and 24mm. If you require a thicker burger than 24mm you can buy a 'deep drop' drum which is adjustable between 5 and 34mm however these are special order drums and would take approx 4-6 weeks to produce.

Various different shaped drums can be bought for the Formatic burger machine, from simple circle or rectangles to more complex shapes like Christmas trees, gingerbread men etc. The only thing that limits you is the available size on the actual drum itself.



Cost of a bespoke (special order) drum? Anything that can be drawn with a ruler or a compass is not classed as a bespoke design i.e. straight angles such as a square, rectangle, triangle, hexagon, etc. Please note rounded triangles do not count (they would be classed as a bespoke design).

The cost of a bespoke (special order) drum will depend on:
  • The number of cut outs (forms) in your drum design: e.g. a single square (single form), or 2 circles (double form), or 3 circles (treble form), etc (see image above)
  • The shape of the drum (i.e. design of the cut out): a free form design e.g. the ghost drum or Christmas Tree, 2 bones in image below would be classed as a bespoke design, which is more expensive
  • The depth for your burger e.g. deep drop (5-34mm) or standard depth (5-24mm)
See table below for pricing:

For more information about the drum sizes and shapes provided please contact are sales team.

BURGER PAPERS:

Please note that you get 500 Burger Papers included when ordering this machine.

Burger papers for the machine are available to purchase from our website or directly over the phone with our Sales Team. Below are the 2 types of burger papers that are available from ScobiesDirect, which are suitable for this machine:
The Formatic burger machine comes as standard with an auto paper attachment, which places a burger paper on the bottom of each burger, and assisted by the wire drum scraper the formed product is then smoothly ejected onto the conveyor belt, presenting it for packaging or additional processing.



ALTERNATIVE SOLUTIONS:

If this FORMATIC R2200, BURGER MACHINE seems too advanced for your needs and you would prefer something more simple, then you may want to consider a simple manual burger press - for making 4" or 5" burgers - if this is the case, then take a look at the SA130 and SA100 Sirman burger presses.

If you already have a sausage filler, then take a look at the Sheerline Burger Units which attaches straight onto the filler and is capable of producing upto 188 burgers per hour.


Deals Available

SAVE £144
Get 27k Burger Papers
FREE
Receive 1 box of 27,000 4.5" Square Burger Papers Free

Offer valid until 30/11/2019 or until stocks last.


Product Specifications & Additional Info

Formatic R2200 Burger MachineBrochure
Formatic R2200 Burger MachineOperating & Maintenance Manual
