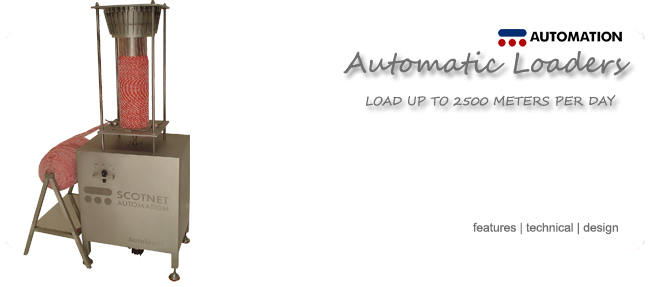

Scotnet Automatic Meat Net Loader
Video     Print

Product Features
Easy Head Removal

Easy Head Removal
Finger head removes in seconds, for fast, easy servicing. Its the fastest net head to remove in the world!

Models

Models for Different Tube Lengths
Models available for 300, 460 and 600mm tube lengths. Custom machines can be built for any tube length or design.
Spring Loaded Fingers

Spring Loaded Fingers
No adjustment required for tube sizes in range. Heads available, 75-150mm, 100-200mm & 150-250mm.

Auto Stop

Automatic Stop
Machines stop automatically when the tubes are full.
Multi Tube Sizes

Multiple tube sizes
With no additional set up.

Flex Feed

Flexible Feed Options
Load from rolls, sacks or bobbins for ultimate flexibility.
Cam Locks

Cam Lock Tube Location
Our unique cam lock tube location system securely locates even bent tube bases.

Cabinet

Enclosed Cabinet
Fully enclosed stainless steel cabinet, no food or bug traps.

Technical Specs
Sizes

All Tube Sizes Loaded
Available in sizes to fit all tubes from 80mm (4") to 300mm (12")

Weight

Weight
Approx 90kg
Speed

Speed
Loads an average net onto a 460 tube in 3 minutes, or 3.5 minutes on a 600mm tube.

Crate

Packing Crate Dimensions
Length 760mm
Width 760mm
Height 2150mm
Dimensions

Machine Dimensions
Width: 615mm
Depth: 470mm
Height: 1150mm for 300 version
           1310mm for 460 version
           1450mm for 600 version

Supplies

Supplies
Compresses Air: 5.5 BAR (80psi)
1320 litres (46 cubic feet) per min.

Design
Design

Expert design
Designed specifically for loading elastic netting, by us.

316 Stainless

Made from 316
All contact parts are made from 316 grade stainless steel, ideal for food contact
Made in Scotland

Made in Scotland
Made in Scotland in a computer controlled plant for guaranteed accuracy.

Prevent Bacteria

Prevent bacteria
Seamless welds, and stainless construction make sure the machines are easy to clean.
CE Logo

CE Marked
All our machines are CE marked, assuring you of their compliance with the latest safety standards

No Trap Points

No Trap Points
CE approved gaps on all moving parts, nowhere to trap fingers.
