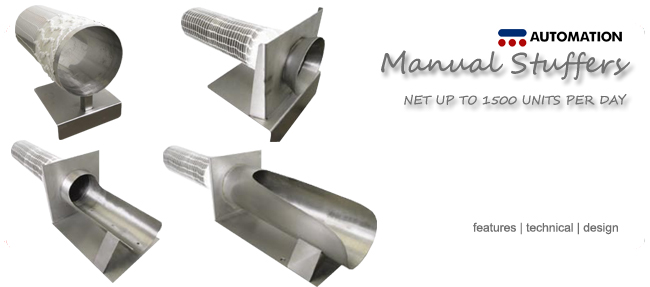

Mini Tube Product Features
|
|
Entry Level Stuffer The lowest cost stuffer we make.
Designed For Hand Stuffing Made to 400mm (16'') long, making them ideal for hand stuffing with a single operator.
|
|
|
Dual Purpose Stand Simply stand vertical for loading, and
turn horizontal for stuffing.
Different Sizes Available in all sizes from 75-300mm (3-12'')
|
| |
|
Tube Holder Mini & Master Stuffers
|
|
Take pre loaded tubes, and slide them into any of the holders, no tools
required. Ideal with our 460mm (18'') tubes.
|
| |
|
Tube Holder Product Features
|
|
Tube Holder Slightly flared opening, ideal for products that require no shaping before entering the tube.
Tube Holder Technical Flare Opening: Tube Diameter + 30mm (1'') Length = 250mm (10'') Width = 220mm
(9'')
|
| |
|
Mini Stuffer Product Features
|
|
Mini Stuffer Flared opening with support, ideal for products that require a little shaping before entering the tube.
Mini Stuffer Technical Flare Opening: Tube Diameter +
50mm (2'') Length = 500mm (20'') Width = 220mm
(9'')
|
| |
|
Master Stuffer Product Features
|
|
Master Stuffer Large flared opening, providing maximum support for multi muscle products and hams.
Master Stuffer Technical Flare Opening: Tube Diameter + 50mm (2'') Length = 500mm (20'') Width = 220mm
(9'')
|
| |
|
Technical Specs
|
|
All Sizes Made Available in sizes to fit all tubes from 80mm (4") to 300mm (12")
Weight Approx 3kg
|
|
|
Speed Net about 600 units per hour, with 2 operators.
Packing Case Dimensions Length 600mm Width
400mm Height 300mm
|
| |
|
Design
|
|
Expert design Designed specifically for loading elastic netting, by us.
Made from 316 All contact parts are
made from 316 grade stainless steel, ideal for food
contact
|
|
|
Made in Scotland Made in Scotland in a computer controlled plant for guaranteed accuracy.
Prevent bacteria Seamless welds, and stainless construction make sure the machines are easy to clean.
|
|
|
CE Marked All our machines are CE marked, assuring you of their compliance with the latest safety standards
|
|
